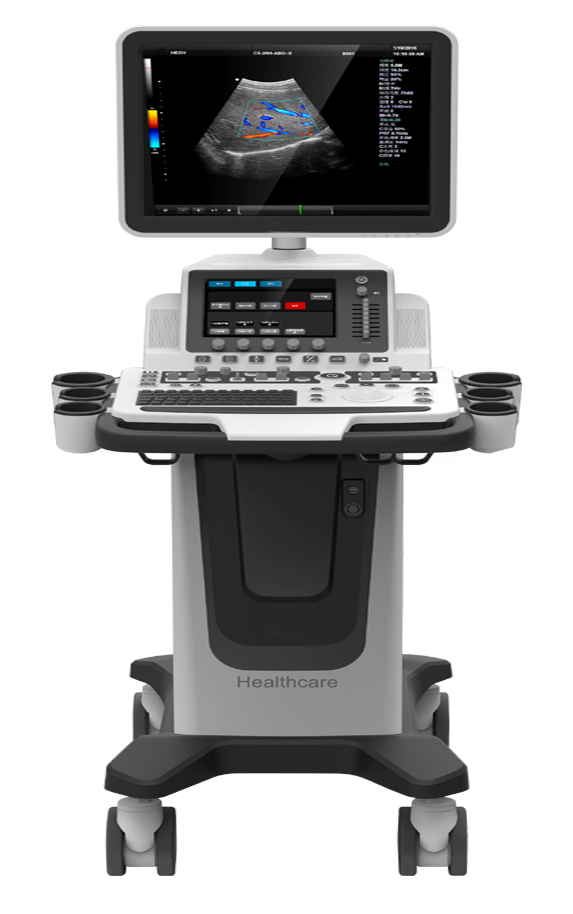

宠博士A80型推车式兽用彩超仪
发布时间: 2019-08-14 17:44
1. Imaging mode:
* B,B | B,4 B,B |M
* Color Doppler (CFM)
* Directional Capability Doppler (DPDI)
* Pulse Wave Doppler (PWD)
* B + PWD (double)
* B + CFM / PDI / DPDI + PWD
* High pulse repetition frequency (HPRF)
* Tissue harmonic imaging (THI)
1. 成像模式：
* B,B | B,4 B,B |M
* 彩色多普勒(CFM)
* 定向能力多普勒(DPDI)
* 脉冲波多普勒(PWD)
* B + PWD(双)
* B + CFM / PDI / DPDI + PWD
* 高脉冲重复频率(HPRF)
* 组织谐波成像(THI)
2. Scanning method:
* Electronic line, electronic convex, electronic micro-convex scanning depth: 2-24cm
* Color Doppler
* Pulse repetition frequency variable: 0.5 kHz
* Wall filter setting: 3 steps (pulse repetition rate 5%, % 10%, 5%)
* Steering angle linear sensor: ±10°
* Real-time spatial filter: 4
* CFM palette > 10
* PDI palette > 10
* B / color priority control
* Color threshold control
* CFM baseline control
* Doppler frequency selection
* color frame average
* Transparent color mapping
* Pulse Wave Doppler
* Pulse repetition frequency variable: 1 - 10 kHz
* Wall filter setting: 16 steps (2.5% - -20% of pulse repetition frequency)
* Steering angle linear sensor: ±10°
* Real-time tracking and automatic calculation of spectral parameters
* Stereo: volume control
* PWD palette l> 10
* Doppler frequency selection
2. 扫描方法：
* 电子线、电子凸、电子micro-convex扫描深度:2-24cm
* 彩色多普勒
* 脉冲重复频率变量:0.5 kHz
* 墙过滤器设置:3步骤(脉冲重复频率5%,% 10%,5%)
* 操舵角线性传感器:±10°
* 实时空间滤波器:4
* CFM调色板> 10
* PDI调色板> 10
* B /颜色优先级控制
* 颜色阈值控制
* CFM基线控制
* 多普勒频率选择
* 颜色帧平均
* 透明颜色映射
* 脉冲波多普勒
* 脉冲重复频率变量:1 - 10 kHz
* 墙过滤器设置:16个步骤(脉冲重复频率的2.5% - -20%)
* 操舵角线性传感器:±10°
* 实时跟踪与光谱参数的自动计算
* 立体声:音量控制
* PWD调色板l> 10
* 多普勒频率选择
3. The following probes can be supported:
* 3.5MHz R60/R50 convex array probe; wide frequency, 2.0MHz-5.0MHz frequency conversion
* 7.5MHz L40 line array probe; broadband, 5.0MHz-10.0MHz frequency conversion
* 6.5MHz R10/R13 cavity probe; broadband, 5.0MHz-8.0MHz frequency conversion
* Other probes can be selected according to requirements
(such as 3.5MHz R20 heart probe; broadband, 2.0MHz-5.0MHz frequency conversion)
3.可支持以下探头:
* 3.5MHz R60/R50凸阵探头；宽频，2.0MHz-5.0MHz变频
* 7.5MHz L40线阵探头；宽频，5.0MHz-10.0MHz变频
* 6.5MHz R10/R13腔内探头；宽频，5.0MHz-8.0MHz变频
* 其它探头可根据要求选配
（如3.5MHz R20 心脏探头；宽频，2.0MHz-5.0MHz变频）
4. High linear density higher resolution scanning mode:
* 8-stage TGC control
* Dynamic range > 120 decibels
* Overall gain control
* M - scan speed control mode
* Sound power control
* Variable frame average
* Brightness, contrast
* Advanced gamma control
* Scanning direction, rotation, lifting control
* Negative / active control
* Echo enhancement control
* Noise suppression function
* Image and video
* AVI, JPG, BMP, PNG, TIF, DCM (DICOM)
4.高线密度更高的分辨率扫描模式：
* 8段TGC控制
* 动态范围> 120分贝
* 整体增益控制
* M -扫描速度控制模式
* 声功率控制
* 可变帧平均
* 亮度,对比度
* 先进的伽马控制
* 扫描方向、旋转、升降控制
* 消极/积极控制
* 回声增强控制
* 噪音抑制功能
* 图像和视频
* AVI,JPG,BMP,PNG,TIF,DCM(DICOM)
5. General measurement and calculation:
* Distance, length, area, perimeter, roll angle, stenosis, A / B ratio, speed, pressure gradient (PG), acceleration, resistivity index (RI), heart rate, velocity time integral (VTI), and more.
* Measurement and calculation software package
* Obstetrics, gynecology, abdomen, urology, blood vessels, heart disease, etc.
* Obstetrics: double top diameter (BPD), cranial diameter (CRL), fetal sac (GS), head circumference (HC), abdominal circumference (AC), femur length (FL), abdominal thick diameter (APAD), abdominal transverse Trail (TAD), trunk cross section (FTA), humerus length (HUMERUS), occipital forehead (OFD), thoracic diameter (THD), tibia (TIBIA), ulna (ULNA), amniotic fluid index (AFI), last menstrual period ( LIMP), last ovulation date (BBT), fetal physiology score (FBP)
* Gynecology: uterine diameter, intima thickness, ovarian volume, dominant follicle, cervical long diameter, uterine cervix
* Small organs: thyroid, hip joint
* Heart: aortic diameter (AOD), left atrial diameter (LAD), interventricular septum thickness (IVSTd), left ventricular diameter (LVIDd), aortic wall motion amplitude (AA), LAD/AOD, left ventricular posterior wall thickness ( LVPWd), left ventricular end-systolic diameter (LVIDs), ejection fraction (EF), EF velocity (EF SLP), peak A/E (CA/CE), mean contraction rate (MVCF), cardiac output (CO) ), cardiac index (CI), weight index (LVMWI), aortic valve flow (AVSV), shortening score (FS), AC velocity (ACV), ejection time (ET), stroke volume (SV), heart Beat index (SI), myocardial weight (LVMW), mitral valve flow (QMV)
* Urinary: residual urine, prostate, PSAD
* Multiple obstetric measurement reports, fetal physiology scores and reports, fetal development curves.
* Automatic report generation system for departments such as gynecology, small organs, heart, and urinary.
* Optional 4 D module
5.通用的测量和计算：
* 距离、长度、面积、周长、卷角、狭窄,A / B比率,速度,压力梯度(PG)、加速度、电阻率指数(RI)、心率、速度时间积分(VTI),等等。
* 测量和计算软件包
* 产科、妇科、腹部、泌尿外科,血管,心脏病等
* 产科：双顶径（BPD）、头臂径（CRL）、胎囊（GS）、头围（HC）、腹围（AC）、股骨长（FL）、腹部厚径（APAD）、腹部横径（TAD）、躯干横截（FTA）、肱骨长（HUMERUS）、枕额径（OFD）、胸直径（THD）、胫骨（TIBIA）、尺骨（ULNA）、羊水指数（AFI）、末次月经（LIMP）、末次排卵日期（BBT）、胎儿生理评分（FBP）
* 妇科：子宫径线、内膜厚度、卵巢体积、优势卵泡、宫颈长径、宫体宫颈
* 小器官：甲状腺、髋关节
* 心脏：主动脉内径(AOD)，左房内径(LAD)，室间隔厚度(IVSTd)，左室内径(LVIDd)，主动脉壁运动幅度(AA)，LAD/AOD，左室后壁厚度(LVPWd)，左室收缩末内径(LVIDs)，射血分(EF)，EF速度(EF SLP)，A峰/E峰(CA/CE)，平均周缩率(MVCF)，心排量(CO)，心脏指数(CI)，重量指数(LVMWI)，主动脉瓣口流量(AVSV)，缩短分数(FS)，AC速度(ACV)，射血时间(ET)，每搏量(SV)，心搏指数(SI)，心肌重量(LVMW)，二尖瓣口流量(QMV)
* 泌尿：残余尿样、前列腺、PSAD
* 多种产科测量报告、胎儿生理评分以及报告、胎儿发育曲线。
* 妇科、小器官、心脏、泌尿等科室的自动报告生成系统。
* 可选的4 D模块
6. Extension interface:
VGA, TV interface
USB2.0 interface
Network Interface
Support, laser printer, video printer
Net weight 6KG, gross weight 8KG
6.扩展接口：
VGA、电视接口
USB2.0接口
网络接口
支持,激光打印机、视频打印机
净重6KG，毛重8KG
